- Place of Origin: Hubei, China (Mainland)
- Brand Name: jiaxin
- Model Number: PEM-1325

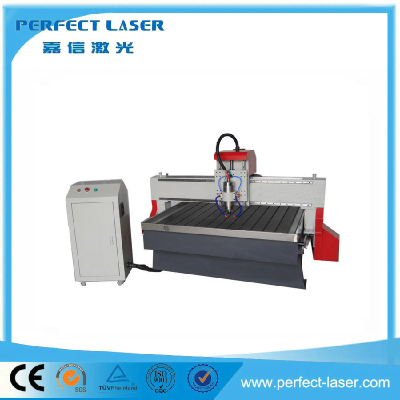

Applicable Fields of Advertising CNC Router:
1>It applies to hard material such as marble, granite, glass and stone, etc.
If the stone is man-made, then the nornal advertising engraving machine is also suitable since the rigidity of the man-made stone is not as high as the native stone.
2>The maximum of the processing depth is 10mm-15mm, but it changes according to different rigidity of the materials.
Product Features of Advertising CNC Router:
1>Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.
2>Germany double nuts automatic ball screw , Excellent two-bolt pole made in Germany and sideways made in Japan or Korea.
3>Advanced DSP digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine.
4>No dust oiling structure, guarantee the long term running of the mechanical aspect.
5>Break point and break knife continue engraving function, can engrave at any place as you like
6>The compatibility is high, CAD/CAM software such as Type 3 /Art Arm / Castmate / Proe /CorelDraw /Art cut.
7>High power frequency changing water cooled spindle, can process hard materials efficiently.
8>Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them
9>Reinforced load-bearing bed,Precision round rail,Spindle motor 1.5KW/2.2KW/3KW/4.5KW, Screw drive,stainless steel sink platform,Auto water cycle, Enlarge driver, 10pcs stone use knives for free.
- Place of Origin: Hubei, China (Mainland)
- Brand Name: jiaxin
- Model Number: PEM-1325
Technical Parameter of Advertising CNC Router:
Product Name | CNC Router for advertising | |||||
Model | PEM-3030(300*300mm) | |||||
Power | 1.5kw | 2.2kw | ||||
Price(USD/unit) | ||||||
Table material | Aluminium Alloy | |||||
Maximum feed height | 80mm | |||||
X,Y,Z Guideway rails type | Round Shape Guide Rail, Rod Transmission | |||||
Max Engraving Speed | 4,000-7,000mm/min | |||||
Resolution ratio | 0.002mm | |||||
Repetition accuracy | ±0.02mm | |||||
Spindle power | 1.5KW (Optional 2.2kw, 3kw,4.5kw) | |||||
Spindle Rotating Speed | 6000 - 24,000rpm | |||||
Spindle cooling | Water Cooling | |||||
Drive motor system | Step Motor and Step Driver | |||||
Interface | PCI Port or USB Port | |||||
Memory buffer (Flash) | 128MB | |||||
Engraving Command | G code, u00, mmg, PLT, HPG | |||||
Command language system | English Version, Windows 98/2000/XP Operation System | |||||
Operational Software | Original Type3 Software, ArtCam software or Wentai Software | |||||
Command language system | English Version, Windows 98/2000/XP Operation System | |||||
Software Compatibility | Support CAD/CAM software, PLT format, Corel Draw, Auto CAD | |||||
Working temperature | 0-45°C | |||||
Relative humidity | 30% - 75% |
